[클라우드] 1. 쿠버네티스 설치

이번 포스팅에서는 클라우드 자동화 도구인 쿠버네티스의 설치 절차에 관해 포스팅을해 보겠 습니다.

OS는 Ubuntu 20.04 기준으로 진행을 합니다.

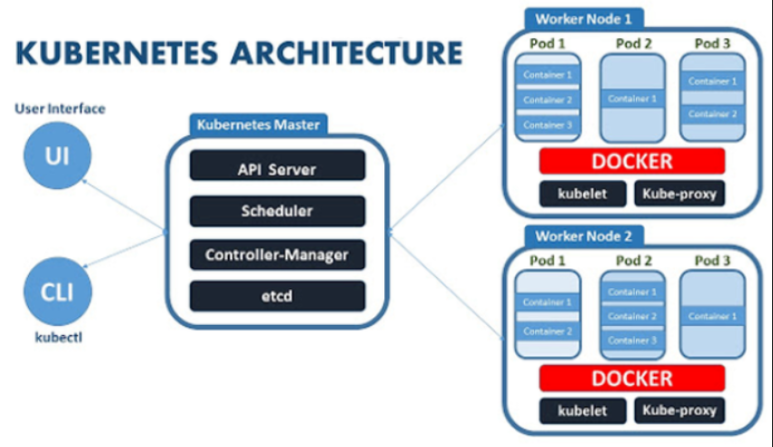

쿠버네티스는 위의 그림처럼 인프라를 자동 구성 및 관리 그리고 배포와 장애복구까지 해주는 툴입니다.

크게 Master Node와 Worker Node로 분류가 되고, Master Node는 위의 그림 처럼 4가자로 구성이 됩니다.

• API Server
• Scheduler
• Controller-Manager
• etcd

그리고 Worker Node들은 크게 4가지로 구성이 됩니다.

• Pod
• Docker
• Kubelet
• Kube-proxy

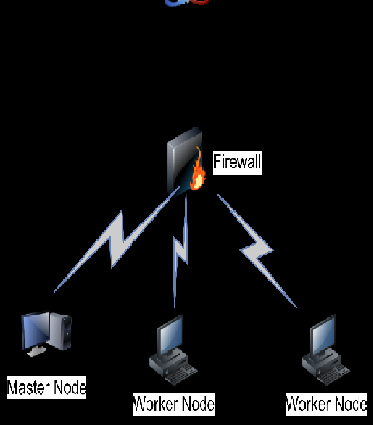

세부 내용과 작동 방식은 추후 포스팅에 게시 하도록 하고, 이번 포스팅에서는 설치 기준으로 포스팅을 하겠습니다. 우선 실습 환경을 보면 Master Node VM 1대와 Worker Node VM 2대를 VirtualBox환경에서 NAT 네트워크 환경에서 아래와 같이 VM들을 설치를 합니다.

​

​

아래의 절차는 Master Node와 Worker Node 모드에 설치가 필요 합니다. (1번 ~ 8번)

1. Docker를 아래와 같이 설치 합니다.

root@master-VirtualBox:~#apt-get update root@master-VirtualBox:~#apt-get install docker.io

1. apt package 업데이트와 https, curl, ca-certi 설치를 아래와 같이 진행 합니다.

oot@master-VirtualBox:~# apt-get update && apt-get install -y apt-transport-https curl ca-certificates Hit:1 http://security.ubuntu.com/ubuntu focal-security InRelease Hit:2 http://kr.archive.ubuntu.com/ubuntu focal InRelease Hit:3 http://kr.archive.ubuntu.com/ubuntu focal-updates InRelease Hit:4 http://kr.archive.ubuntu.com/ubuntu focal-backports InRelease Reading package lists... Done Reading package lists... Done Building dependency tree Reading state information... Done ca-certificates is already the newest version (20211016~20.04.1). ca-certificates set to manually installed. The following package was automatically installed and is no longer required: libfwupdplugin1 Use 'apt autoremove' to remove it. The following NEW packages will be installed: apt-transport-https curl 0 upgraded, 2 newly installed, 0 to remove and 1 not upgraded. Need to get 163 kB of archives. After this operation, 573 kB of additional disk space will be used. Get:1 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe amd64 apt-transport-https all 2.0.9 [1,704 B] Get:2 http://kr.archive.ubuntu.com/ubuntu focal-updates/main amd64 curl amd64 7.68.0-1ubuntu2.12 [161 kB] Fetched 163 kB in 1s (113 kB/s) Selecting previously unselected package apt-transport-https. (Reading database ... 178564 files and directories currently installed.) Preparing to unpack .../apt-transport-https_2.0.9_all.deb ... Unpacking apt-transport-https (2.0.9) ... Selecting previously unselected package curl. Preparing to unpack .../curl_7.68.0-1ubuntu2.12_amd64.deb ... Unpacking curl (7.68.0-1ubuntu2.12) ... Setting up apt-transport-https (2.0.9) ... Setting up curl (7.68.0-1ubuntu2.12) ... Processing triggers for man-db (2.9.1-1) ... root@master-VirtualBox:~# ​

2. 구글의 퍼블릭키를 다운받아 로컬의 key에 추가 합니다.

root@master-VirtualBox:~# curl -s https://packages.cloud.google.com/apt/doc/apt-key.gpg | apt-key add - OK root@master-VirtualBox:~#

3. 쿠버네티스 저장소를 로컬 저장소에 추가 합니다.

oot@master-VirtualBox:~# curl -s https://packages.cloud.google.com/apt/doc/apt-key.gpg | apt-key add - OK root@master-VirtualBox:~# cat <<EOF >/etc/apt/sources.list.d/kubernetes.list > deb https://apt.kubernetes.io/ kubernetes-xenial main > EOF root@master-VirtualBox:~#

4. 추가된 쿠버네티스 패키지 다운로드를 위해 apt 업데이트 및 쿠버네티스 설치를 합니다.

root@master-VirtualBox:~# apt-get update Get:1 http://security.ubuntu.com/ubuntu focal-security InRelease [114 kB] Hit:2 http://kr.archive.ubuntu.com/ubuntu focal InRelease Get:4 http://kr.archive.ubuntu.com/ubuntu focal-updates InRelease [114 kB] Get:3 https://packages.cloud.google.com/apt kubernetes-xenial InRelease [9,383 B] Get:5 https://packages.cloud.google.com/apt kubernetes-xenial/main amd64 Packages [57.6 kB] Get:6 http://security.ubuntu.com/ubuntu focal-security/main amd64 DEP-11 Metadata [40.6 kB] Get:7 http://kr.archive.ubuntu.com/ubuntu focal-backports InRelease [108 kB] Get:8 http://security.ubuntu.com/ubuntu focal-security/universe amd64 DEP-11 Metadata [66.7 kB] Get:9 http://security.ubuntu.com/ubuntu focal-security/multiverse amd64 DEP-11 Metadata [2,464 B] Get:10 http://kr.archive.ubuntu.com/ubuntu focal-updates/main amd64 DEP-11 Metadata [278 kB] Get:11 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe amd64 Packages [926 kB] Get:12 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe i386 Packages [678 kB] Get:13 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe Translation-en [208 kB] Get:14 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe amd64 DEP-11 Metadata [391 kB] Get:15 http://kr.archive.ubuntu.com/ubuntu focal-updates/multiverse amd64 DEP-11 Metadata [944 B] Get:16 http://kr.archive.ubuntu.com/ubuntu focal-backports/main amd64 DEP-11 Metadata [8,004 B] Get:17 http://kr.archive.ubuntu.com/ubuntu focal-backports/universe amd64 DEP-11 Metadata [30.5 kB] Fetched 3,033 kB in 14s (221 kB/s) Reading package lists... Done oot@master-VirtualBox:~# apt-get install -y kubelet kubeadm kubectl Reading package lists... Done Building dependency tree Reading state information... Done The following package was automatically installed and is no longer required: libfwupdplugin1 Use 'apt autoremove' to remove it. The following additional packages will be installed: conntrack cri-tools ebtables kubernetes-cni socat Suggested packages: nftables The following NEW packages will be installed: conntrack cri-tools ebtables kubeadm kubectl kubelet kubernetes-cni socat 0 upgraded, 8 newly installed, 0 to remove and 1 not upgraded. Need to get 75.2 MB of archives. After this operation, 313 MB of additional disk space will be used. Get:3 http://kr.archive.ubuntu.com/ubuntu focal/main amd64 conntrack amd64 1:1.4.5-2 [30.3 kB] Get:1 https://packages.cloud.google.com/apt kubernetes-xenial/main amd64 cri-tools amd64 1.24.2-00 [12.3 MB] Get:7 http://kr.archive.ubuntu.com/ubuntu focal/main amd64 ebtables amd64 2.0.11-3build1 [80.3 kB] Get:8 http://kr.archive.ubuntu.com/ubuntu focal/main amd64 socat amd64 1.7.3.3-2 [323 kB] Get:2 https://packages.cloud.google.com/apt kubernetes-xenial/main amd64 kubernetes-cni amd64 0.8.7-00 [25.0 MB] Get:4 https://packages.cloud.google.com/apt kubernetes-xenial/main amd64 kubelet amd64 1.24.3-00 [19.2 MB] Get:5 https://packages.cloud.google.com/apt kubernetes-xenial/main amd64 kubectl amd64 1.24.3-00 [9,316 kB] Get:6 https://packages.cloud.google.com/apt kubernetes-xenial/main amd64 kubeadm amd64 1.24.3-00 [9,002 kB] Fetched 75.2 MB in 14s (5,514 kB/s) Selecting previously unselected package conntrack. (Reading database ... 178575 files and directories currently installed.) Preparing to unpack .../0-conntrack_1%3a1.4.5-2_amd64.deb ... Unpacking conntrack (1:1.4.5-2) ... Selecting previously unselected package cri-tools. Preparing to unpack .../1-cri-tools_1.24.2-00_amd64.deb ... Unpacking cri-tools (1.24.2-00) ... Selecting previously unselected package ebtables. Preparing to unpack .../2-ebtables_2.0.11-3build1_amd64.deb ... Unpacking ebtables (2.0.11-3build1) ... Selecting previously unselected package kubernetes-cni. Preparing to unpack .../3-kubernetes-cni_0.8.7-00_amd64.deb ... Unpacking kubernetes-cni (0.8.7-00) ... Selecting previously unselected package socat. Preparing to unpack .../4-socat_1.7.3.3-2_amd64.deb ... Unpacking socat (1.7.3.3-2) ... Selecting previously unselected package kubelet. Preparing to unpack .../5-kubelet_1.24.3-00_amd64.deb ... Unpacking kubelet (1.24.3-00) ... Selecting previously unselected package kubectl. Preparing to unpack .../6-kubectl_1.24.3-00_amd64.deb ... Unpacking kubectl (1.24.3-00) ... Selecting previously unselected package kubeadm. Preparing to unpack .../7-kubeadm_1.24.3-00_amd64.deb ... Unpacking kubeadm (1.24.3-00) ... Setting up conntrack (1:1.4.5-2) ... Setting up kubectl (1.24.3-00) ... Setting up ebtables (2.0.11-3build1) ... Setting up socat (1.7.3.3-2) ... Setting up cri-tools (1.24.2-00) ... Setting up kubernetes-cni (0.8.7-00) ... Setting up kubelet (1.24.3-00) ... Created symlink /etc/systemd/system/multi-user.target.wants/kubelet.service → /lib/systemd/system/kubelet.service. Setting up kubeadm (1.24.3-00) ... Processing triggers for man-db (2.9.1-1) ... root@master-VirtualBox:~#

5. 쿠버네티스가 자동 업데이트 되지 않도록 아래 명령을 실행 합니다.

root@master-VirtualBox:~# apt-mark hold kubelet kubeadm kubectl kubelet set on hold. kubeadm set on hold. kubectl set on hold. root@master-VirtualBox:~#

6. 쿠버네티스 iptable을 위한 설정을 아래와 같이 변경 및 반영 합니다.

root@master-VirtualBox:~# cat <<EOF > /etc/sysctl.d/k8s.conf > net.bridge.bridge-nf-call-ip6tables = 1 > net.bridge.bridge-nf-call-iptables = 1 > net.ipv4.ip_forward = 1 > EOF root@master-VirtualBox:~# root@master-VirtualBox:~# sysctl --system * Applying /etc/sysctl.d/10-console-messages.conf ... kernel.printk = 4 4 1 7 * Applying /etc/sysctl.d/10-ipv6-privacy.conf ... net.ipv6.conf.all.use_tempaddr = 2 net.ipv6.conf.default.use_tempaddr = 2 * Applying /etc/sysctl.d/10-kernel-hardening.conf ... kernel.kptr_restrict = 1 * Applying /etc/sysctl.d/10-link-restrictions.conf ... fs.protected_hardlinks = 1 fs.protected_symlinks = 1 * Applying /etc/sysctl.d/10-magic-sysrq.conf ... kernel.sysrq = 176 * Applying /etc/sysctl.d/10-network-security.conf ... net.ipv4.conf.default.rp_filter = 2 net.ipv4.conf.all.rp_filter = 2 * Applying /etc/sysctl.d/10-ptrace.conf ... kernel.yama.ptrace_scope = 1 * Applying /etc/sysctl.d/10-zeropage.conf ... vm.mmap_min_addr = 65536 * Applying /usr/lib/sysctl.d/30-tracker.conf ... fs.inotify.max_user_watches = 65536 * Applying /usr/lib/sysctl.d/50-default.conf ... net.ipv4.conf.default.promote_secondaries = 1 sysctl: setting key "net.ipv4.conf.all.promote_secondaries": Invalid argument net.ipv4.ping_group_range = 0 2147483647 net.core.default_qdisc = fq_codel fs.protected_regular = 1 fs.protected_fifos = 1 * Applying /usr/lib/sysctl.d/50-pid-max.conf ... kernel.pid_max = 4194304 * Applying /etc/sysctl.d/99-sysctl.conf ... * Applying /etc/sysctl.d/k8s.conf ... net.ipv4.ip_forward = 1 * Applying /usr/lib/sysctl.d/protect-links.conf ... fs.protected_fifos = 1 fs.protected_hardlinks = 1 fs.protected_regular = 2 fs.protected_symlinks = 1 * Applying /etc/sysctl.conf ... root@master-VirtualBox:~# ​

7. 호스트의 Hot Swap 기능을 끄고 재부팅 시에도 off되도록 설정을 변경 합니다.

root@master-VirtualBox:~# swapoff -a root@master-VirtualBox:~# sed -i '/swap/s/^/#/' /etc/fstab

8. 쿠버네티스를 재 시작 합니다.

root@master-VirtualBox:~# systemctl daemon-reload root@master-VirtualBox:~# systemctl restart kubelet

9. 쿠버네티스 클러스터링을 시작을 합니다(Master Node에서만)

주의할점을 맨 아래 부분에 나오는 token 값을 변도의 메모장에 저장해 둡니다(빨간색)

root@master-VirtualBox:~# kubeadm init [init] Using Kubernetes version: v1.24.3 [preflight] Running pre-flight checks [preflight] Pulling images required for setting up a Kubernetes cluster [preflight] This might take a minute or two, depending on the speed of your internet connection [preflight] You can also perform this action in beforehand using 'kubeadm config images pull' [certs] Using certificateDir folder "/etc/kubernetes/pki" [certs] Generating "ca" certificate and key [certs] Generating "apiserver" certificate and key [certs] apiserver serving cert is signed for DNS names [kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local master-virtualbox] and IPs [10.96.0.1 192.168.1.4] [certs] Generating "apiserver-kubelet-client" certificate and key [certs] Generating "front-proxy-ca" certificate and key [certs] Generating "front-proxy-client" certificate and key [certs] Generating "etcd/ca" certificate and key [certs] Generating "etcd/server" certificate and key [certs] etcd/server serving cert is signed for DNS names [localhost master-virtualbox] and IPs [192.168.1.4 127.0.0.1 ::1] [certs] Generating "etcd/peer" certificate and key [certs] etcd/peer serving cert is signed for DNS names [localhost master-virtualbox] and IPs [192.168.1.4 127.0.0.1 ::1] [certs] Generating "etcd/healthcheck-client" certificate and key [certs] Generating "apiserver-etcd-client" certificate and key [certs] Generating "sa" key and public key [kubeconfig] Using kubeconfig folder "/etc/kubernetes" [kubeconfig] Writing "admin.conf" kubeconfig file [kubeconfig] Writing "kubelet.conf" kubeconfig file [kubeconfig] Writing "controller-manager.conf" kubeconfig file [kubeconfig] Writing "scheduler.conf" kubeconfig file [kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env" [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml" [kubelet-start] Starting the kubelet [control-plane] Using manifest folder "/etc/kubernetes/manifests" [control-plane] Creating static Pod manifest for "kube-apiserver" [control-plane] Creating static Pod manifest for "kube-controller-manager" [control-plane] Creating static Pod manifest for "kube-scheduler" [etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests" [wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s [apiclient] All control plane components are healthy after 21.003363 seconds [upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace [kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster [upload-certs] Skipping phase. Please see --upload-certs [mark-control-plane] Marking the node master-virtualbox as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers] [mark-control-plane] Marking the node master-virtualbox as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule node-role.kubernetes.io/control-plane:NoSchedule] [bootstrap-token] Using token: vdtbt8.c2xi7o64kq1u6ocw [bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles [bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes [bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials [bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token [bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster [bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace [kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key [addons] Applied essential addon: CoreDNS [addons] Applied essential addon: kube-proxy ​ Your Kubernetes control-plane has initialized successfully! ​ To start using your cluster, you need to run the following as a regular user: ​ mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config ​ Alternatively, if you are the root user, you can run: ​ export KUBECONFIG=/etc/kubernetes/admin.conf ​ You should now deploy a pod network to the cluster. Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at: https://kubernetes.io/docs/concepts/cluster-administration/addons/ ​ Then you can join any number of worker nodes by running the following on each as root: ​ kubeadm join 192.168.1.4:6443 --token vdtbt8.c2xi7o64kq1u6ocw \ --discovery-token-ca-cert-hash sha256:da78c6cf3a148f958474f003d42643cc64a9efe1aa7e4000d3dd5db10270ac85 root@master-VirtualBox:~# ​

10. 쿠버네티스 클러스터를 이용헤서 시작하기 위해 Master Node에서 아래 명령을 실행 합니다.

주의할 점은 어느 사용자로 실행을 하느냐에 따라 다른데. 여기서는 root 사용자로 실행을 합니다. (Master Node)

root@master-VirtualBox:~# mkdir -p $HOME/.kube root@master-VirtualBox:~# cp -i /etc/kubernetes/admin.conf $HOME/.kube/config root@master-VirtualBox:~# chown $(id -u):$(id -g) $HOME/.kube/config

11. 클러스터로 접속을할때 사용되는 인증서 셋팅을 root 계정으로 아래 명령을 실행 합니다.(Master Node)

root@master-VirtualBox:~# export KUBECONFIG=/etc/kubernetes/admin.conf

12. Pod간의 통신을 가능하게 해주는 Pod network add-on 모듈을(calico)의 manifest 파일을 다운로드 합니다.(Master Node)

oot@master-VirtualBox:~# curl https://docs.projectcalico.org/archive/v3.17/manifests/calico.yaml -O % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed 100 183k 100 183k 0 0 84984 0 0:00:02 0:00:02 --:--:-- 84984 root@master-VirtualBox:~#

13. Meniffest 파일을 적용을 합니다.(Master Node)

root@master-VirtualBox:~# kubectl apply -f calico.yaml configmap/calico-config created customresourcedefinition.apiextensions.k8s.io/bgpconfigurations.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/bgppeers.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/blockaffinities.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/clusterinformations.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/felixconfigurations.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/globalnetworkpolicies.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/globalnetworksets.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/hostendpoints.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/ipamblocks.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/ipamconfigs.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/ipamhandles.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/ippools.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/kubecontrollersconfigurations.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/networkpolicies.crd.projectcalico.org created customresourcedefinition.apiextensions.k8s.io/networksets.crd.projectcalico.org created clusterrole.rbac.authorization.k8s.io/calico-kube-controllers created clusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers created clusterrole.rbac.authorization.k8s.io/calico-node created clusterrolebinding.rbac.authorization.k8s.io/calico-node created daemonset.apps/calico-node created serviceaccount/calico-node created deployment.apps/calico-kube-controllers created serviceaccount/calico-kube-controllers created Warning: policy/v1beta1 PodDisruptionBudget is deprecated in v1.21+, unavailable in v1.25+; use policy/v1 PodDisruptionBudget poddisruptionbudget.policy/calico-kube-controllers created root@master-VirtualBox:~# ​

14. 이제 Worker Node에서 쿠버네티스 노드 클러드에 포함하기 위해 아래 명령을 실행 합니다.

root@worknode1-VirtualBox:~# kubeadm join 192.168.1.4:6443 --token vdtbt8.c2xi7o64kq1u6ocw \ > --discovery-token-ca-cert-hash sha256:da78c6cf3a148f958474f003d42643cc64a9efe1aa7e4000d3dd5db10270ac85 [preflight] Running pre-flight checks [preflight] Reading configuration from the cluster... [preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml' [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml" [kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env" [kubelet-start] Starting the kubelet [kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap... ​ This node has joined the cluster: * Certificate signing request was sent to apiserver and a response was received. * The Kubelet was informed of the new secure connection details. ​ Run 'kubectl get nodes' on the control-plane to see this node join the cluster.

15. 이제 Master node에서 클러스터에 포함된 노드들의 상태를 조회해 봅니다.

root@master-VirtualBox:~# kubectl get nodes NAME STATUS ROLES AGE VERSION master-virtualbox Ready control-plane 48m v1.24.3 worknode1-virtualbox Ready <none> 30m v1.24.3 worknode2-virtualbox Ready <none> 65s v1.24.3

16. 이제 클러스터에 컨트롤 Pod들의 상태를 조회해 봅니다.

root@master-VirtualBox:~# kubectl get pods -n kube-system -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES calico-kube-controllers-56bfc4c5c7-cv5j7 1/1 Running 0 43m 172.16.168.193 worknode1-virtualbox <none> <none> calico-node-5q4xb 1/1 Running 0 43m 192.168.1.4 master-virtualbox <none> <none> calico-node-l8m94 1/1 Running 0 35m 192.168.1.5 worknode1-virtualbox <none> <none> calico-node-tw6xw 1/1 Running 0 6m14s 192.168.1.6 worknode2-virtualbox <none> <none> coredns-6d4b75cb6d-224hd 1/1 Running 0 53m 172.16.29.66 master-virtualbox <none> <none> coredns-6d4b75cb6d-qgscs 1/1 Running 0 53m 172.16.29.65 master-virtualbox <none> <none> etcd-master-virtualbox 1/1 Running 0 53m 192.168.1.4 master-virtualbox <none> <none> kube-apiserver-master-virtualbox 1/1 Running 0 53m 192.168.1.4 master-virtualbox <none> <none> kube-controller-manager-master-virtualbox 1/1 Running 0 53m 192.168.1.4 master-virtualbox <none> <none> kube-proxy-hh7fv 1/1 Running 0 35m 192.168.1.5 worknode1-virtualbox <none> <none> kube-proxy-wwm2h 1/1 Running 0 53m 192.168.1.4 master-virtualbox <none> <none> kube-proxy-xztdj 1/1 Running 0 6m14s 192.168.1.6 worknode2-virtualbox <none> <none> kube-scheduler-master-virtualbox 1/1 Running 0 53m 192.168.1.4 master-virtualbox <none> <none> root@master-VirtualBox:~#

​

그럼 이제 쿠버네티스 설치가 모두 완료 되었습니다.

다음 포스팅에서는 이제 쿠버네시트를 통한 Pod, service 등 운영 방법에 대해 순차적으로 포스팅을 하겠 습니다.

​
